Computer Thin Blade Slitter Scorer Machine 2200mm

Computer Type Slitter Scorer Machine Thin Blade 2200mm

1. Automatic knife grinding system can realize the production process, no stop grinding blade. Sharpening device according to material or trimming condition at any time to set the interval meter and the grinding time.
2. Blades line calibration, it has micro adjustment function.
3. Line pressing depth adjustment, matched micro adjust with manual button.
4. Upper blade wheel, upper line pressing wheel air pressure control,replacement order no need cutting off the board.
5. Line pressing wheels can be adjusted to the mountain convex, convex (for optional); concaveⅠ,concave Ⅱ, concave Ⅲ, flat pressing under different thickness and requirements for cardboard, In order to facilitate the cardboard printing.
6. Blade replacement convenient, fast; each blade is adjustable automatic knife grinding lubricating device, the user can set the sharpening lubrication time and time interval according to different paper material and cut situation.
7. 1mm high quality blade high-speed cutting board, to ensure that the cutting is smooth, no deformation, beautiful appearance and good for full plate printing.
8. The blade wheel is controlled by the cylinder lift or down, transform size no need cutting off the board.

Technical parameters

1. work speed:150m/min
2. max. slit width:2200mm *min.slit width:140mm
3. standard configuration:6 blades 10 lines
4. whole machine left right transverse movement±90mm
5. outer dimension:3680mm×1350mm×2340mm
6. total power:16.25kw
7. work air pressure:0.6~0.9 MPa
8. relative humidity:20％～90％
9. temperature requirement:5～50 degree

Computer Thin Blade Slitter Scorer Machine

slitter cutting machine 2200mm

Thin Blade Slitter Scorer Machine 2200mm

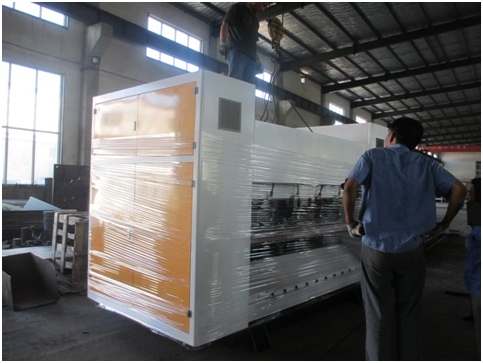

Computer Thin Blade Slitter Scorer Machine 2200mm Images
